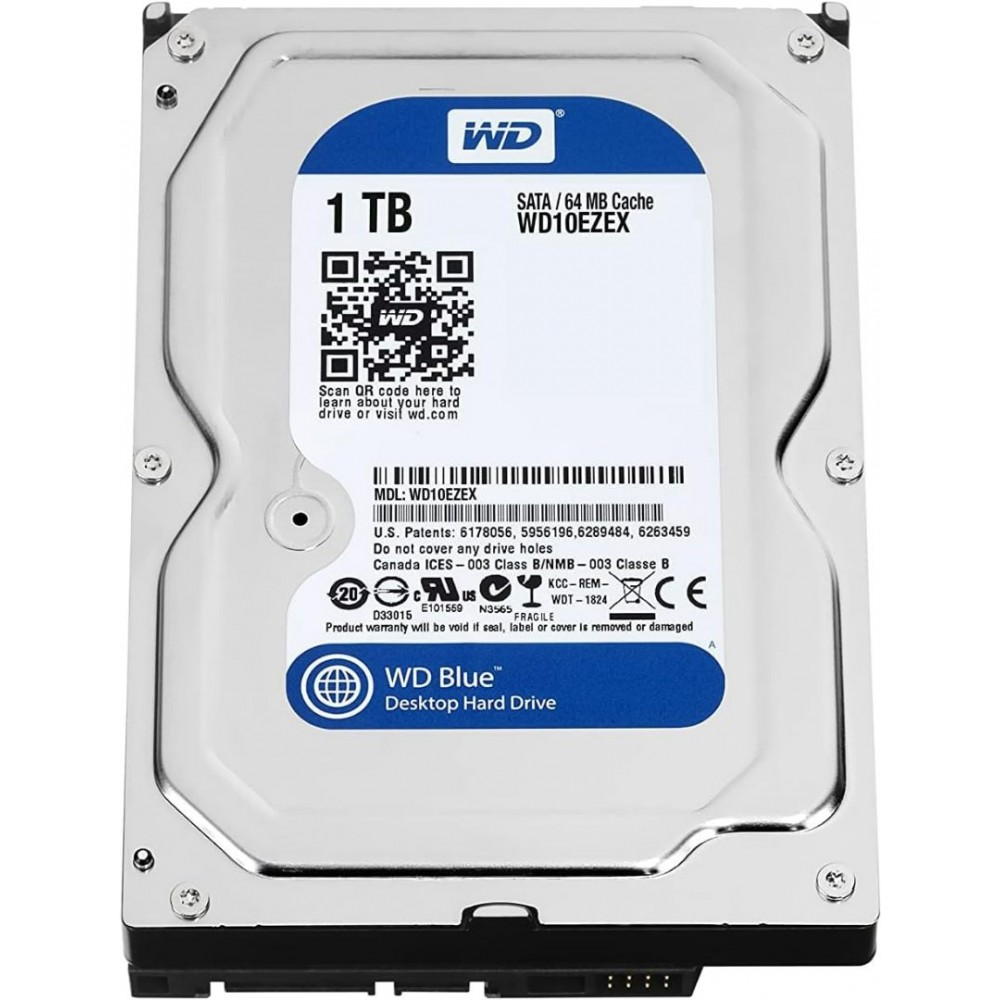

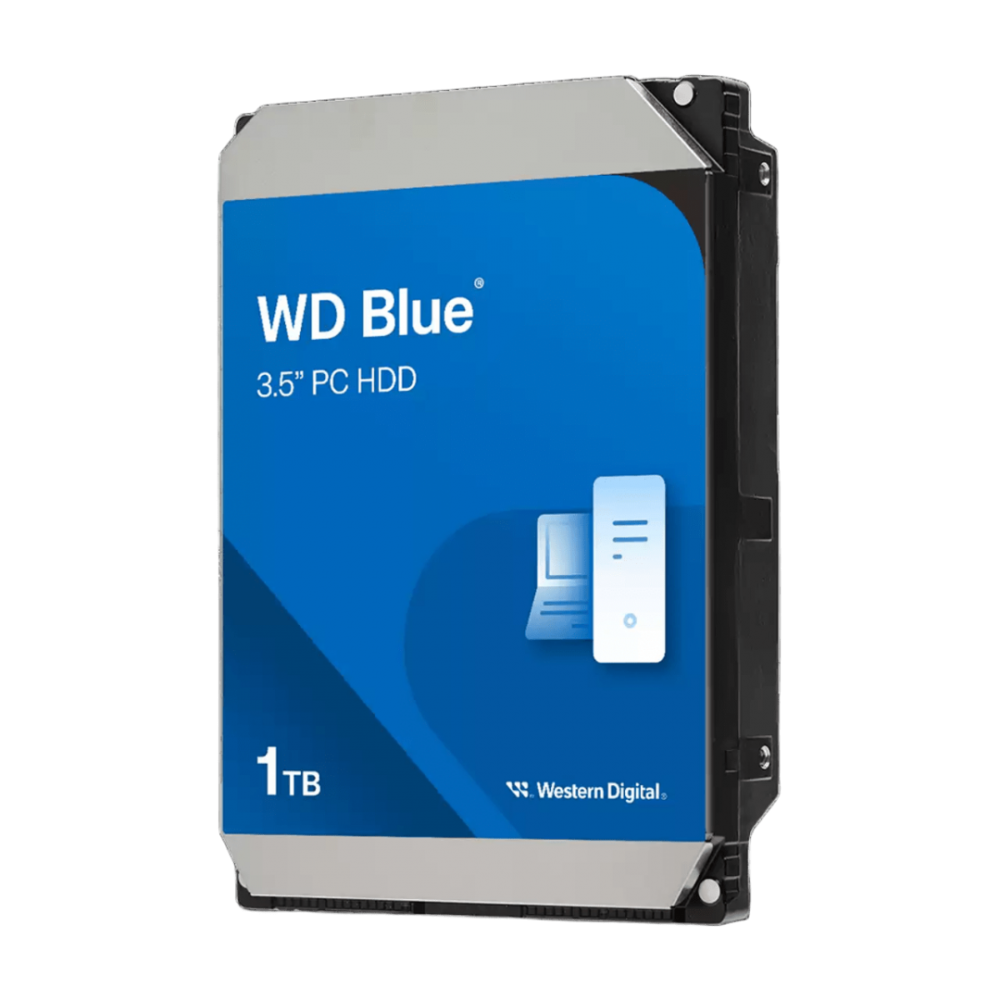

Western Digital WD Blue WD10EZEX-00BBHA0 1TB 3.5 SATA III HDD — 7200 RPM, 64MB Cache, Up to 600 MB/s Transfer Rate, 8-12 ms Seek Time, 26.1mm Height, Reliable Desktop Storage for Gaming, Data Archiving, DVR, Windows Compatible

The WD10EZEX-00BBHA0 is a Western Digital Blue 1TB internal hard drive with the following specifications:

• Capacity: 1 TB (formatted capacity approx. 931.5 GB)

• Form Factor: 3.5-inch

• Interface: SATA 6 Gb/s (SATA III)

• Rotational Speed: 7200 RPM

• Cache: 64 MB

• Max Data Transfer Rate: Up to 600 MB/s (SATA III)

• Sustained Transfer Rate: Around 150 MB/s

• Average Seek Time: 8–12 ms typical

• Power Consumption:

  • Read/Write: 6.8 W

  • Idle: 6.1 W

  • Standby/Sleep: 1.2 W

• Load/Unload Cycles: 300,000 minimum

• Non-recoverable Read Errors: <1 in 10^14 bits read

• Shock Resistance:

  • Operating shock: 30G (2 ms)

  • Non-operating shock: 350G (2 ms)

• Acoustics:

  • Idle: 29 dBA

  • Seek: 30 dBA

• Operating Temperature: 0°C to 60°C

• Non-operating Temperature: -40°C to 70°C

• Dimensions:

  • Height: 26.1 mm (1.03 in)

  • Width: 101.6 mm (4.00 in)

  • Depth: 146.9 mm (5.79 in)

• Weight: Approximately 0.44 kg (0.97 lbs)

• Advanced Format: Yes (4K sectors)

• RoHS Compliant: Yes

• Firmware: Supports upgrades (example firmware version 01.01A01)

• Compatibility: Suitable for desktop PCs, gaming, DVR, data archiving, and primary or secondary storage

• Warranty: Typically 2 years limited warranty
